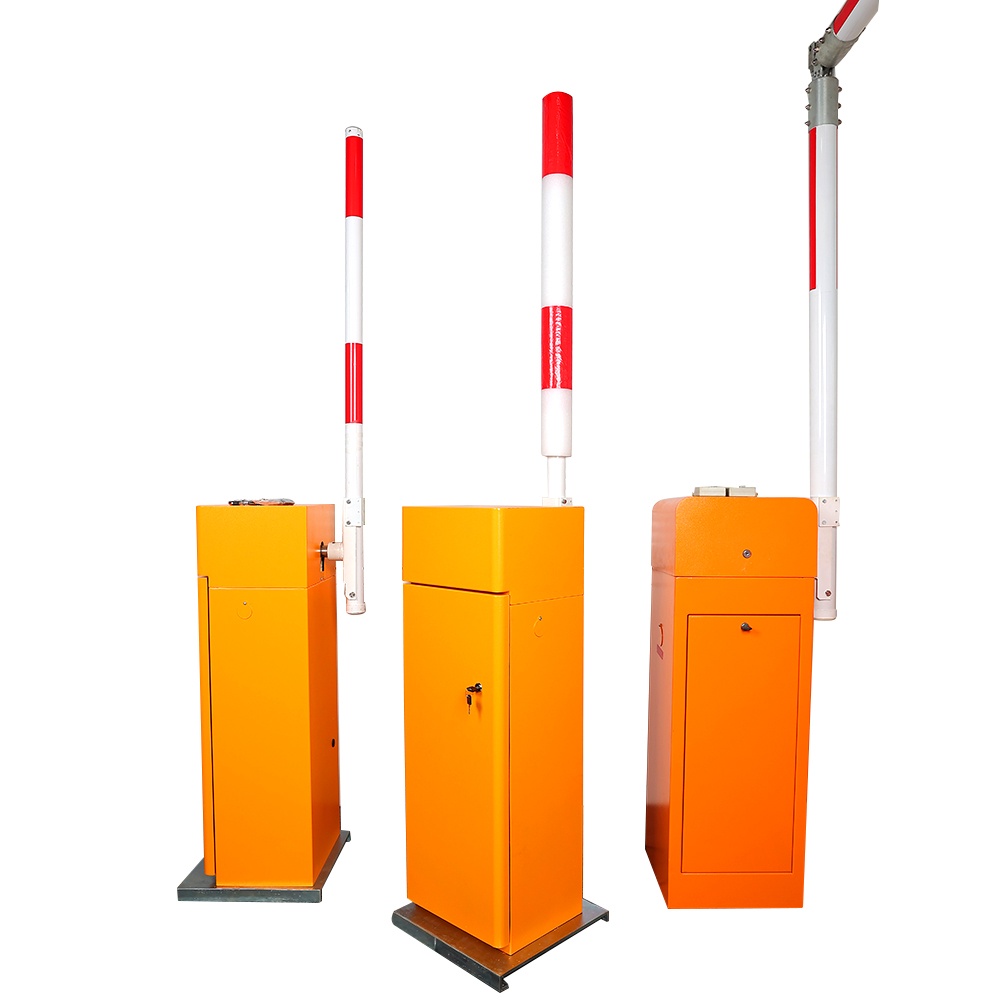

DC306SF
Features：
Servo drive system, long service life, up to 10 million times.
High-sensitivity auto-reverse function.
Soft start and slow stop, adjustable speed.
Easy to change left/right running direction.
User can select that the barrier will automatically openwhen the power is off.
Manual handle when power supply failure.
Various interface for safety devices and signal outputs,suitable for parking system.
Technical data
| Model | DC306SF |
| Power supply | 220V |

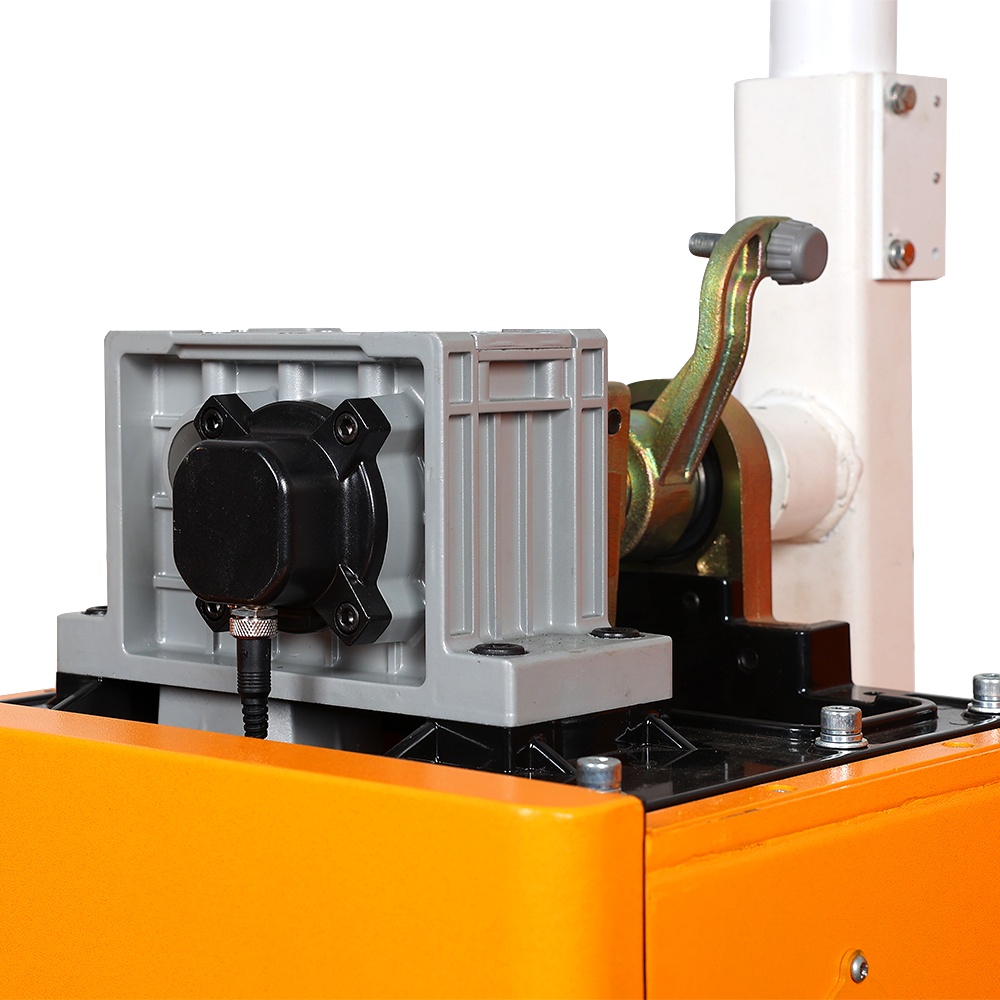

| Motor type | Servo motor |
| Motor power | 400W |
| Arm length | 3m-4m |
| Up/Down time | 0.6sec.~2.5sec. |
| Ambient temperature | -30℃~+60℃ |
| Proctction class | IP54 |

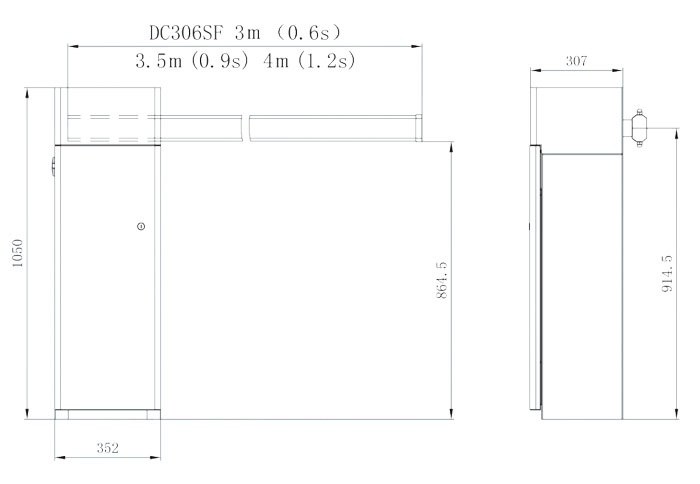

| Dimensions | 352*307*1050mm |

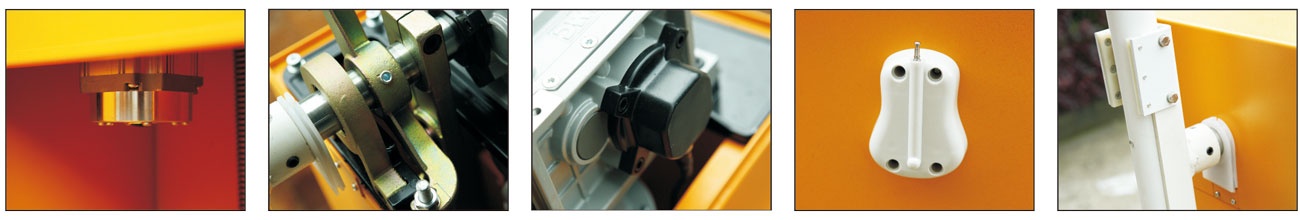

Accessories
